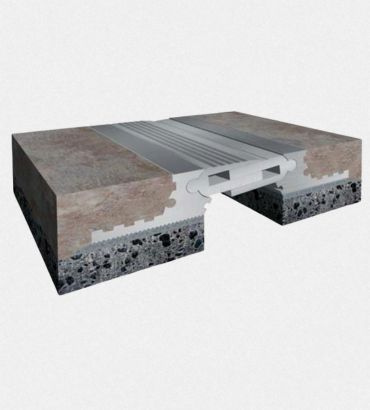

High load capacity flush fit expansion joint for use on industrial floors subject to slow moving traffic (cars, trucks, forklifts, trolleys, etc). Installed beneath the screed.
-
Certified Company
ISO 9001:2005 -
The Best Industrial
Solution Provider -
X-Joint FHD-BS
| Description | High load capacity flush fit expansion joint for use on industrial floors subject to slow moving traffic (cars, trucks, forklifts, trolleys etc). Installed beneath the screed. |
|---|---|
| Material | Anodised Aluminium 6063/T6. Can also be supplied in mill finish aluminium. |
| Waterproofing System | X-Pruf Polyliner PVC system |
| Joint Seal | EPDM extruded gasket supplied with adhesives |
| Supply Lengths | 4m, custom lengths can be produced against minimum order. |
| Load Capacity | FHD-BS 50: 6 tons, FHD-BS 75: 5 tons, FHD-BS 100: 4 tons |
